I have this Applescript that uses Audio MIDI Setup to connect through MIDI to other computers.
Right now the script works for the most part, it connects to the computer, but at the moment I have it connecting to every computer that is populated (up to three, these are auto populated by bonjour). The problem is that list of computers is never in the same order, it gets populated differently every time.
What I want to do is move down the list like the Applescript is already doing, but only click the âconnectâ button if an item in the list has the correct words in it.

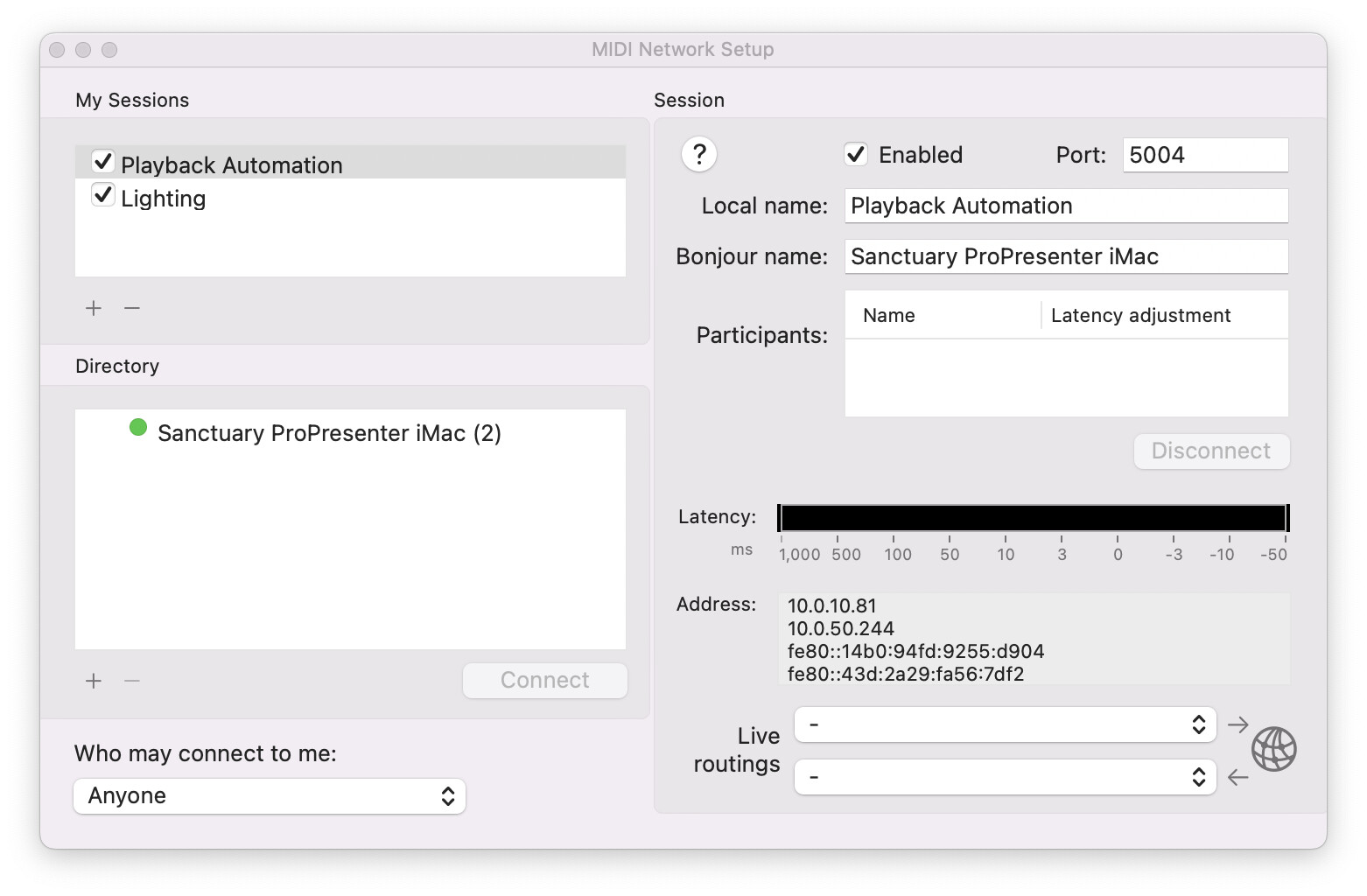

I have included an image of the window. The area under âDirectoryâ is where the list gets populated with multiple computers.
display dialog ("MIDI Starting Up" & return & return & "Please do not touch mouse or keyboard till startup confirmation.") buttons "" giving up after 8
delay 1
showMIDINetworkSetup()
delay 1
activateTheMidiSession(2)
patchTheMidiSession(2, 1)
patchTheMidiSession(2, 2)
patchTheMidiSession(2, 3)
delay 3
tell application "System Events"
if exists window "Midi Network Setup" of process "Audio MIDI Setup" then
keystroke "w" using command down
end if
if exists window "MIDI Studio" of process "Audio MIDI Setup" then
keystroke "w" using command down
end if
if exists window "Audio Devices" of process "Audio MIDI Setup" then
keystroke "w" using command down
end if
end tell
delay 1
activate
display dialog ("MIDI succesfully started, you can now close this window." & return & return & "DO NOT QUIT AUDIO MIDI SETUP APP") default button "OK"
on activateTheMidiSession(2)
activate application "Audio MIDI Setup"
tell application "System Events"
tell process "Audio MIDI Setup"
try
set theCheckbox to checkbox 1 of UI element 1 of row 2 of table 1 of scroll area 1 of group 1 of window "MIDI Network Setup"
tell theCheckbox
set checkboxStatus to value of theCheckbox as boolean
if checkboxStatus is false then click theCheckbox
end tell
end try
end tell
end tell
end activateTheMidiSession
on patchTheMidiSession(2, theResponderNumber)
activate application "Audio MIDI Setup"
tell application "System Events"
tell process "Audio MIDI Setup"
try
select row 2 of table 1 of scroll area 1 of group 1 of window "MIDI Network Setup"
select row theResponderNumber of table 1 of scroll area 1 of group 3 of window "MIDI Network Setup"
click button "Connect" of group 3 of window "MIDI Network Setup"
end try
end tell
end tell
end patchTheMidiSession
on showMIDINetworkSetup()
try
activate application "Audio MIDI Setup"
tell application "System Events"
tell process "Audio MIDI Setup"
try
click menu item "Show MIDI Studio" of menu 1 of menu bar item "Window" of menu bar 1
end try
delay 3
try
click menu item "Open MIDI Network SetupâŚ" of menu 1 of menu bar item "MIDI Studio" of menu bar 1
end try
end tell
end tell
on error
return false
end try
end showMIDINetworkSetup
Iâve never used âAudio MIDI Setupâ before.
How do I get to this window âMIDI Network Setupâ.
Also one should not use âkeystrokeâ command to do things unless no other option is available. It would fail if the target application should accidentally move to not being the frontmost app. Better to use âclickâ command on button to close
tell application "System Events"
tell process "Audio MIDI Setup"
click button 1 of window "Midi Network Setup"
end tell
end tell
You can get to the MIDI Network Setup by clicking on Show MIDI Studio in the menu bar and then once that window is up, there is a globe/world icon in the top right corner of that window that will open up MIDI Network Setup.
tell application "System Events"
tell process "Audio MIDI Setup"
if exists window "MIDI Network Setup" then
click button 1 of window "MIDI Network Setup"
end if
end tell
end tell
Here is code to get to the list
tell application "System Events"
if "Audio MIDI Setup" is not in name of application processes then return
tell application process "Audio MIDI Setup"
if exists window "MIDI Network Setup" then
set flag to true
else
set flag to false
if exists window "MIDI Studio" then
tell window "MIDI Studio" to click checkbox 2 of group 1 of group 4 of toolbar 1
if exists window "MIDI Network Setup" then set flag to true -- test to make sure window opened
end if
end if
if flag then -- window is now open
repeat with i from 1 to count (rows of table 1 of scroll area 1 of group 3 of window "MIDI Network Setup")
tell UI element 1 of row i of table 1 of scroll area 1 of group 3 of window "MIDI Network Setup"
if name does not contain "Test" then -- will uncheck any that don't have 'Test' in name
if ((value of checkbox 1) = 1) then
click checkbox 1
end if
end if
end tell
end repeat
end if
end tell
end tell

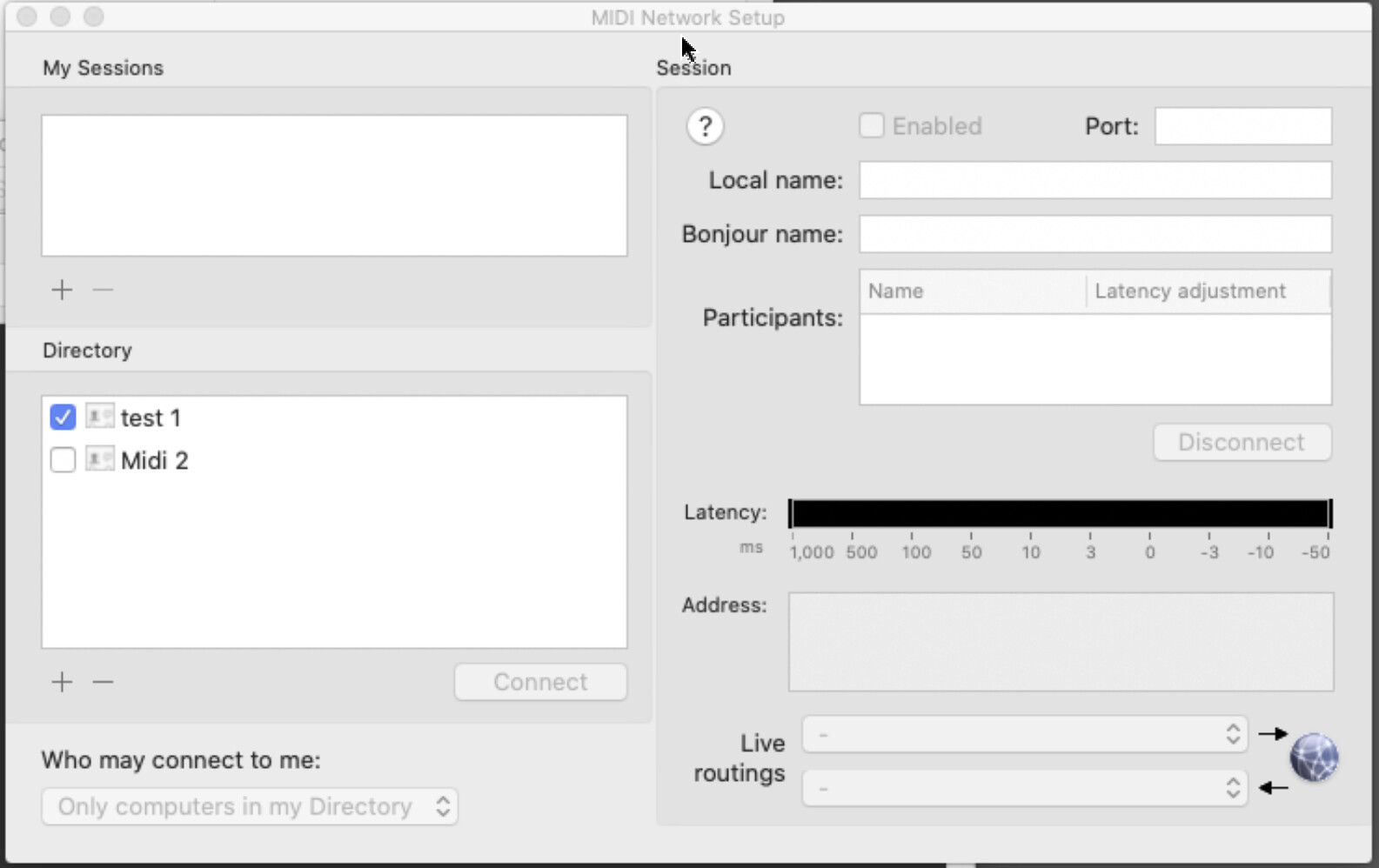

I gave this a try, but I canât seem to get it to work. My thought would be because there isnât actually a checkbox to check in that scroll area and thus it canât check or uncheck it.
I figured it out, when you allow other midi devices to auto populate, then they show up without checkboxes. Iâll go about adding them myself to get the checkboxes and see how that goes.
Correct, the âtypicalâ way would be to click on an item on the list and click the âconnectâ button then do the same for another you would want connected.
My thought would be to move down the list one by one and if one of the itemâs in the list met the name criteria then click the âconnectâ button, otherwise move on.
The correct words are pretty fluid, something like âlightingâ would be fine.
Easy to modify my script to not bother with the checkbox and instead check the name/title instead. Will do so when I get back. (Sight-seeing)
Also since I donât have a midi setup, what happens after you click connect? Is there a dialog or other window that appears that I would have to contend with before I move on to the next connection?
Or is there a visual indication that the connection happened lick a check mark or bullet character appearing in the name?
here is the edited version that clicks the connect button
tell application "Audio MIDI Setup" to activate
tell application "System Events"
if "Audio MIDI Setup" is not in name of application processes then return
tell application process "Audio MIDI Setup"
if exists window "MIDI Network Setup" then
set flag to true
else
set flag to false
if not (exists window "MIDI Studio") then
click menu item "Show MIDI Studio" of menu "Window" of menu bar 1
repeat until exists window "MIDI Studio"
delay 1
end repeat
end if
tell window "MIDI Studio"
repeat until exists checkbox 2 of group 1 of group 5 of toolbar 1
delay 1
end repeat
click checkbox 2 of group 1 of group 5 of toolbar 1
end tell
repeat until exists window "MIDI Network Setup"
delay 1
end repeat
set flag to true -- test to make sure window opened
end if
if flag then -- window is now open
repeat with aRow in rows of table 1 of scroll area 1 of group 3 of window "MIDI Network Setup"
set aRow to contents of aRow
if (name of UI element 1 of aRow) contains "Test" then -- will uncheck any that don't have 'Test'
set selected of aRow to true
repeat until enabled of button "Connect" of group 3 of window "MIDI Network Setup"
delay 0.5
end repeat
delay 1
click button "Connect" of group 3 of window "MIDI Network Setup"
delay 3
if description of window 1 is "alert" then
click button "OK" of window 1
delay 1
end if
set selected of aRow to false -- not needed, but I do it for the visuals
end if
end repeat
end if
end tell
end tell
